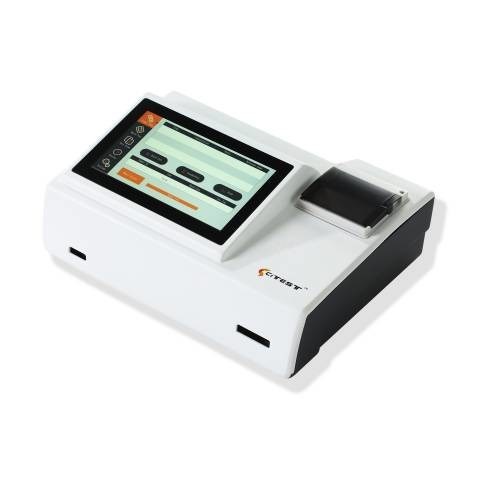

Fluorescence Immunoassay Analyzer works with certain fluorescent reagents. It’s for in vitro diagnosis professional and Point of Care Use. It may be used in central laboratories of medical institutions, outpatient or emergency departments, clinical departments or medical services (such as community health centers), or medical center, etc. It can also be used in research laboratories.
|
Fluorescence Immunoassay |
|
Cassette |
|
Quantitative, Qualitative |
|
< 10 seconds |
|
Ref: Analytes |
|
Ref: Package Insert |
|
DC 12V |
|
280 mm (Length) × 240 mm (Width) × 130 mm (Height) |
|
7 inch |
|
< 2.5kg |
|
Linux-based, Windows-Compatible program |
|
LED |
|
Excitation spectrum: Mean wavelength λ0=365nm Reception spectrum: Mean wavelength λ1=610nm |
|
RS232 Port-1, USB Port – 4, LAN Port -1 |
|
50000 test results |
|
-10℃ to 40℃, relative humidity: 20% to 90%, atmospheric pressure: 86 to 106 kPa; and in a ventilated environment free of corrosive gases. Measures should be taken to avoid moisture, and prevent impact and severe vibration during transport. |
|
4-30℃ |
|
Built-in thermal printer |
|
CV≤10% |
|
CV≤10% |
Features
| Technical Specifications | 1. Plug and play Simple Operation supported by ID cards eliminating the need for calibration each time. 2. Ideal for Emergency situations with lightweight and easy operation. 3. Quantitative Test Results一Critical for emergency therapeutic decisions. 4. Reading time less than 10 seconds - Time-saving. 5. Eliminates the need for constant clearing of cache with a storage capacity of up to 10000 test results. 6. Builtin thermal printer, printing test reports instantly. 7. Option of connecting to Laboratory information system. |
|
| Principle: | Fluorescence Immunoassay | |
| Test Format : | Cassette | |
| Measurement : | Quantitative, Qualitative | |
| Read Time : | < 10 Seconds | |
| Display : | 7" LCD touch screen | |
| Power Source : | DC 12V | |
| Dimensions(L*W*H) : | 280*240*130 mm | |
| Weight : | <2.5 kg | |
| OS : | Linux-based, Windows-Compatible program | |
| Storage Condition : | -10 - 30℃ | |
| Working Condition : | 4- 30℃ | |
| Printer : | Built-in thermal printer | |
| Connectivity : | USB 4 ports, LAN port, RS232 COM port (WLAN and GPRS are optional functions) |
|
| Compatibility : | LIS, HIS | |
